Key Takeaways
- For precise pipe end alignment in cross-country and large-diameter pipeline projects, an internal pneumatic line-up clamp is an essential instrument.
- It delivers concentric alignment, supports clean root passes, and significantly improves weld quality.
- Premium clamps reduce weld defects, rework, and overall welding cycle time on the project.
- They are widely used in oil and gas, water, power, chemical, and city gas distribution pipelines.
- SPM Equipment serves customers across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore with high-quality alignment clamp solutions.
SPM Equipment is one of the most trusted manufacturers and suppliers when industries across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore look for a premium internal pneumatic line up clamp — focused on delivering precision-engineered, durable, and high-performance alignment clamps designed for cross country pipelines, oil and gas projects, and large-scale industrial welding applications.
In every major pipeline project, one small detail quietly decides the strength, integrity, and long-term safety of the entire line — the quality of pipe alignment at the joint before welding. A misaligned joint may look minor on the surface, but it can lead to weld defects, weak spots, leakages, and serious operational problems years down the line. In high-pressure pipelines carrying oil, gas, water, or other critical industrial fluids, that kind of risk is simply unacceptable.
This is exactly where the role of a precision-built internal pneumatic line up clamp becomes critical.It is one of those technologies that the entire pipeline relies on, even though it might not show up in every project photo.. The clamp aligns pipe ends internally, holds them concentrically, and provides a clean, stable, well-supported root condition for the welder to make a strong, defect-free root pass. The result is faster welding, stronger joints, fewer reworks, and far better overall project quality.
At SPM Equipment, we have spent years engineering internal alignment clamps built for the realities of demanding pipeline construction — long hours, large diameters, harsh field conditions, and zero tolerance for weld defects. As a trusted manufacturer serving customers in India, Qatar, Kazakhstan, Libya, Thailand, and Singapore, we believe alignment quality is the foundation of every successful pipeline project.
An Internal Pneumatic Line Up Clamp: What Is It?

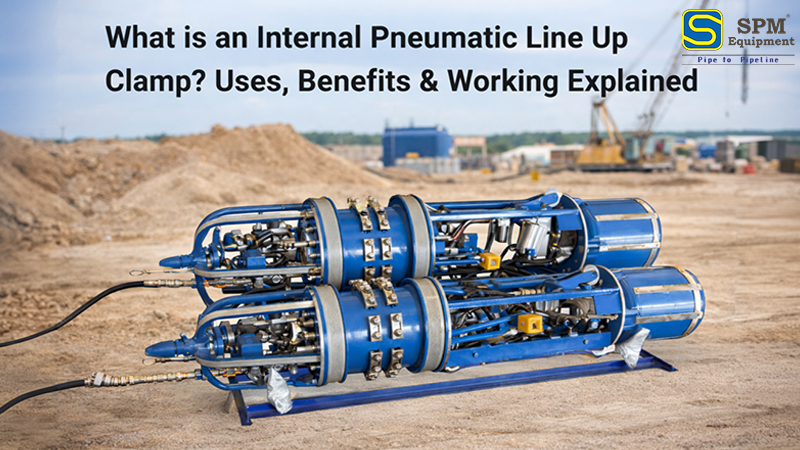

An internal pneumatic line up clamp is a specialised tool used in cross country pipelines and large-diameter welding projects to align two pipe ends from the inside before welding. The clamp is inserted into the pipe through one end and expanded pneumatically to grip the inner walls of both pipes, holding them in perfect concentric alignment.
For medium and large pipe diameters, this internal alignment technique is significantly more dependable than external clamps because
- It allows the welder full external access to the joint
- It supports a clean, stable root condition for high-quality root passes
- It reduces hi-low mismatch between pipe ends
- It allows continuous root welding without removing the clamp mid-process
- It improves productivity and weld consistency across the line
This is why a premium internal line up clamp has become a standard piece of equipment on serious oil and gas, water, and process pipeline projects worldwide.
Key Features of a Premium Internal Pneumatic Line Up Clamp
A high-performance clamp is shaped by careful engineering, not just outer appearance. SPM Equipment internal line up clamps are designed around the following technical strengths:
- Robust mechanical structure built for heavy-duty pipeline use
- Pneumatic operation for fast, reliable expansion and release
- High clamping force for accurate alignment
- Even radial pressure distribution for concentric alignment
- Compatibility with a variety of pipe diameters
- Strong, wear-resistant clamping shoes
- Built-in copper backing for clean root pass welding
- Compact, transportable design for field deployment
- Reliable performance even in harsh, remote environments
- Engineered for long service life under continuous field use
These features come together to deliver a clamp that genuinely supports the day-to-day demands of modern pipeline construction, especially in cross country and large-diameter applications.
Common Uses of Internal Pneumatic Line Up Clamps
The use cases for a premium internal line up clamp go far beyond a single industry. Wherever large pipes need to be welded with precision, this tool plays a major role.
Common applications include:
- Cross Country Oil and Gas Pipelines — the primary global use case
- Onshore and Offshore Pipeline Projects — for high-integrity joints
- Water Transmission Pipelines — including long-distance and high-pressure lines
- Power Plant Pipelines — high-temperature and high-pressure service
- Chemical and Petrochemical Plants — for aggressive media handling
- City Gas Distribution Networks — supporting energy infrastructure
- Industrial Process Pipelines — across heavy engineering plants
- Slurry and Mining Pipelines — for long-distance bulk transfer
This wide range of usability is exactly why customers across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore choose serious manufacturers like SPM Equipment for reliable internal alignment tools.
Top Advantages of Using a High-Quality Internal Pneumatic Line Up Clamp
Now let us look at the real, practical advantages of using a premium internal pneumatic line up clamp in your pipeline projects. These are not theoretical benefits — they are everyday improvements that project teams experience on the field.
1. Accurate, Concentric Pipe Alignment
The most important job of any line up clamp is to bring two pipe ends into precise alignment. A premium internal clamp delivers concentric alignment with minimal hi-low offset, which directly improves the quality of every weld on the line.
2. Faster Welding Cycle Times
When alignment is held internally and the root pass can be completed without removing the clamp, welding cycles become significantly faster. On large pipeline projects, this productivity gain quickly translates into days saved across the construction schedule.
3. Cleaner Root Pass Quality
The copper backing on the clamp supports a clean, well-formed root pass. This reduces internal defects, supports better penetration, and improves the structural reliability of the joint. For high-pressure pipelines, root pass quality is one of the most critical factors in long-term performance.
4. Reduced Welding Defects and Rework
Misalignment, gaps, and inconsistent root conditions are major contributors to weld defects. A precision-built internal line up clamp drastically reduces these risks, leading to fewer defects, lower rework, and higher first-time-right weld pass rates on radiographic and ultrasonic inspections.
5. Strong Performance Across Pipe Sizes
A serious internal pneumatic line up clamp supports a wide range of pipe diameters with the right configuration. This flexibility is highly valued by EPC contractors and pipeline operators who deal with varied project specifications across different regions.
6. Suitable for Harsh Field Conditions
Pipeline projects are often executed in tough, remote environments — deserts, plains, hill terrains, coastal regions, and high-altitude areas. A premium internal clamp is built to perform reliably in such conditions, with strong materials, sealed pneumatic components, and a robust structural frame.
7. Higher Productivity for Construction Teams
Reliable equipment improves welder confidence, reduces idle waiting time, and supports a smoother on-site workflow. Premium internal alignment clamps are designed to support productivity from the very first joint to the final tie-in.
8. Better Safety on Site
Stable internal alignment reduces the chance of sudden joint movement, slippage, or unexpected pipe shifts during root pass welding. This contributes to a safer working environment for welders and on-site teams.
9. Long-Term Cost Savings
A high-quality clamp may have higher initial value, but it brings down the long-term cost per joint through better welding efficiency, lower rework, and longer operational life. For large pipeline contracts, this saving is substantial across the project lifecycle.
10. Consistency Across Long Pipeline Spans
Cross country pipelines often run across hundreds of kilometres. Consistency in joint quality from start to finish is critical. A premium internal alignment clamp supports uniform alignment and weld quality across the full project length.
Why Customers Across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore Choose SPM Equipment
We have spent years working with customers across diverse global markets — Indian pipeline contractors, oil and gas projects in Qatar and Libya, infrastructure operators in Kazakhstan, and energy and water projects in Thailand and Singapore. This international exposure has shaped how we manufacture, finish, and deliver our internal line up clamps today.
Our customers consistently appreciate:
- Strong engineering quality and dimensional precision
- Durable performance under demanding pipeline conditions
- Compatibility with a wide range of pipe sizes and specifications
- Reliable lead times and export-ready packaging
- Customisable solutions based on project requirements
- Responsive technical support and dedicated after-sales service
This is exactly why companies across multiple countries continue to choose SPM Equipment as their preferred manufacturer for premium internal pneumatic line up clamp solutions.
Why Choose Us
Here at SPM Equipment, internal pneumatic line up clamps are treated as serious engineering tools, not just standard pipeline accessories. Our clamps are manufactured using high-grade raw materials, modern production lines, precision machining processes, and strict quality control protocols to deliver consistent strength, accuracy, and long-lasting performance. We focus heavily on dimensional accuracy, clamping force, copper backing quality, and pneumatic system reliability so that every joint produced on your line meets professional, project-grade standards.
Our products are flexible, customisable, and suited for a wide range of pipeline diameters, project conditions, and global geographies. From the first technical discussion to delivery, installation guidance, and after-sales support, our team stays involved at every step. With years of dedicated manufacturing experience, strong international exposure, and a commitment to quality, we have become a trusted choice for customers across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore.
Conclusion
A high-quality internal alignment clamp is not just a tool — it is one of the most critical elements that decide the strength, integrity, and long-term performance of every pipeline weld in your project. From cross country oil and gas pipelines to high-pressure water transmission lines, the right internal clamp quietly elevates the quality of the entire operation. Choosing a serious internal pneumatic line up clamp plays a major role in how productive, safe, and dependable your pipeline construction becomes. At SPM Equipment, we are committed to delivering precision-engineered alignment clamps that combine durability, accuracy, and consistent field performance for pipeline projects across India and global markets.
Looking for a precision-engineered internal pneumatic line up clamp for your pipeline project? Talk to our team at SPM Equipment today. Call +91 957 477 0022 or email spmequipment@gmail.com for tailored alignment clamp solutions.
Frequently Asked Questions
An Internal Pneumatic Line Up Clamp: What Is It? used for?
It is used to align two pipe ends internally before welding, holding them in concentric alignment during the root pass to deliver strong, defect-free joints.
Where is this clamp commonly used?
It is widely used in cross country oil and gas pipelines, water transmission lines, power plants, chemical plants, and city gas distribution networks.
How does it improve welding quality?
By reducing hi-low offset, supporting clean root passes through copper backing, and providing stable internal support during welding, it significantly improves joint quality.
Is the clamp available for different pipe sizes?
Yes, internal pneumatic line up clamps are available in different configurations to support a wide range of pipe diameters and project specifications.
Why choose SPM Equipment for internal pneumatic line up clamps?
We offer precision-engineered, durable, and field-tested alignment clamps with reliable export support for customers across India, Qatar, Kazakhstan, Libya, Thailand, and Singapore.
