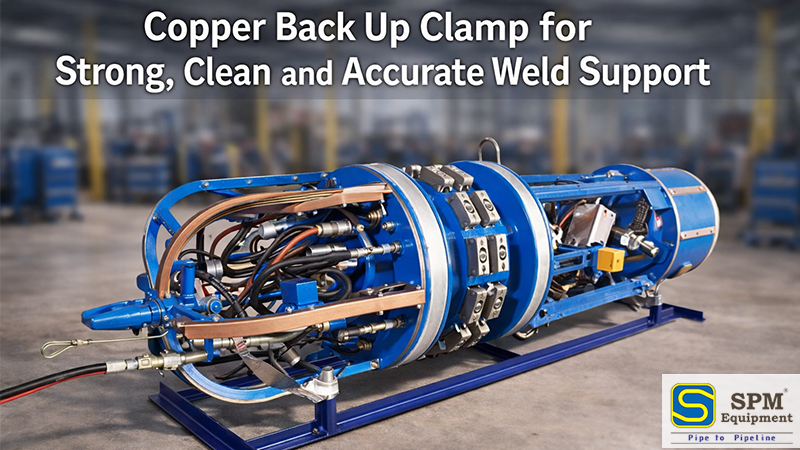

Copper Back Up Clamp for Strong, Clean and Accurate Weld Support

A poorly supported weld on a high-pressure pipeline can lead to undercuts, porosity, and internal defects—issues that often show up only after the line is pressurized. For welding supervisors and pipeline engineers working in Qatar, Kazakhstan, Libya, Thailand, and Singapore, such defects mean costly repairs, delays, and a hit to project reputation. The COPPER BACK UP CLAMP is designed to solve this exact problem by giving welders a stable, thermally efficient backing that supports clean, strong, and accurate welds. At SPM Equipment, our COPPER BACK UP CLAMP system is engineered to enhance precision, efficiency, and safety in pipeline welding operations, making it a practical choice for oil & gas, petrochemical, and industrial projects worldwide.

By the end of this article, you will understand how a COPPER BACK UP CLAMP improves weld quality, where it fits best in your workflow, and why SPM Equipment is a trusted manufacturer for this type of welding support tool.

What Is a Copper Back Up Clamp?

A COPPER BACK UP CLAMP is a specialized backing device used on the inside of a pipe joint during orbital or manual welding. It is typically made from high-conductivity copper and is held in place by a clamp or support mechanism that keeps it aligned with the weld root. Unlike simple internal chill bars or generic backing rings, a COPPER BACK UP CLAMP is engineered to dissipate heat efficiently and provide a stable backing surface. This helps prevent the weld from sagging or burning through, especially when working on stainless steel, alloy, or high-temperature pipes. For companies executing pipeline projects in Qatar, Kazakhstan, Libya, Thailand, and Singapore, using a COPPER BACK UP CLAMP can significantly improve first-time weld quality and reduce the need for rework.

Why Use a Copper Back Up Clamp?

Using a COPPER BACK UP CLAMP is not just about convenience; it directly affects the metallurgical quality and geometry of the weld. Copper’s high thermal conductivity draws heat away from the root pass, allowing the weld pool to solidify more evenly and reducing the risk of undercut, burn-through, or concavity. A well-supported root also minimizes distortion and misalignment, which is especially important in long pipeline runs where dimensional accuracy affects system integrity. In environments like Qatar and Kazakhstan, where temperature swings and high-pressure conditions are common, a COPPER BACK UP CLAMP adds a layer of control that helps maintain joint integrity over time.

Key Benefits of Copper Backing

Copper is chosen specifically for its ability to conduct heat and resist oxidation during welding. A COPPER BACK UP CLAMP helps prevent oxidation on the back side of the weld, keeping the root area cleaner and more uniform. This is particularly useful when welding stainless steel or specialty alloys, where oxidation can lead to undercuts and weak joints.

Another benefit is surface finish. Because the copper backing provides a smooth, even contact area, the root of the weld tends to be straighter and more consistent. This reduces the need for grinding or internal rework, which saves time and labour on large-scale pipeline projects in countries like Libya, Thailand, and Singapore.

How It Improves Weld Quality and Efficiency

A COPPER BACK UP CLAMP supports the weld pool from the inside, giving the welder greater control over bead profile and penetration. When the backing is stable and correctly positioned, the welder does not need to compensate for sagging or uneven heat distribution, which often leads to irregular bead shapes and poor fusion.

In addition, the COPPER BACK UP CLAMP helps maintain a consistent joint gap and alignment, which improves welding speed and repeatability. Instead of repeatedly stopping to adjust the pipe or cool the area, welders can follow a smoother, more predictable sequence. For contractors managing tight schedules in Qatar, Kazakhstan, and beyond, this efficiency can shave significant time off project timelines.

Typical Applications in Pipeline and Industrial Projects

COPPER BACK UP CLAMP units are commonly used in:

• Stainless steel and alloy pipe welding
• Petrochemical and refinery pipeline systems
• High-pressure and high-temperature process lines
• Power generation and turbine piping
• Offshore and sub-sea pipeline tie-ins

In these applications, the clamp is typically placed inside the pipe just behind the root pass, either manually or with an orbital welding rig. Once positioned, it stays in place until the root or even the full weld pass is completed, depending on the configuration. For projects in Qatar, Kazakhstan, Libya, Thailand, and Singapore, where codes and inspections are strict, using a COPPER BACK UP CLAMP demonstrates a commitment to quality and process control. SPM Equipment supplies COPPER BACK UP CLAMP systems that are built to withstand industrial conditions and deliver reliable performance across multiple welds.

Why SPM Equipment Stands Out

SPM Equipment designs and manufactures COPPER BACK UP CLAMP units that focus on secure pipe alignment, durability, and ease of use. Our clamps are engineered from premium materials and are built to maintain shape and conductivity even after repeated exposure to high-temperature welds and industrial environments.

Over time, SPM Equipment has supplied COPPER BACK UP CLAMP systems to customers in various regions, supporting pipeline construction, maintenance, and installation projects. Whether you are working on a large-diameter stainless-steel line in Qatar or a high-pressure petrochemical pipeline in Singapore, SPM Equipment offers a COPPER BACK UP CLAMP solution designed to match the demands of modern welding processes.

By choosing SPM Equipment, you gain access to a COPPER BACK UP CLAMP that is not only strong and accurate but also practical for daily use in challenging field conditions.

Why Choose Us

SPM Equipment a manufacturer and supplier of COPPER BACK UP CLAMP welding support systems that are a gamechanger for pipeline welders and project managers in places like Qatar, Kazakhstan, Libya, Thailand and Singapore where even tiny mistakes can cost you big time in repairs and delays. We get how hard it is to keep everything running smoothly in those environments where the stakes are high. Our COPPER BACK UP CLAMP units are designed to do 3 main jobs really well: keep pipes aligned securely, keep the heat at bay, and last the long haul – which all helps to get you weld joints that are clean, smooth and strong with minimal distortion. So, when you partner with SPM Equipment, youre getting a top-notch, high-quality backup solution that makes a real difference to your project goals and weld quality.

Conclusion

A COPPER BACK UP CLAMP may be a small tool, but it packs a big punch when it comes to pipeline welds. By providing a stable, heat-friendly backing surface, it makes burn-throughs, undercuts and distortion a lot less likely – while also helping you get a cleaner, more even root profile. For countries with high standards like Qatar, Kazakhstan, Libya, Thailand and Singapore, using a COPPER BACK UP CLAMP from SPM Equipment is a smart way to get better first-time weld quality, fewer do-overs and a smoother project roll-out.

To learn more about COPPER BACK UP CLAMP options and how they can support your next pipeline or welding project, call us at +919574770022 or email spmequipment@gmail.com.
