Key Takeaways
- A CAGE TYPE PIPE CLAMP is a hydraulic alignment clamp used to hold large-diameter pipe ends in precise butt-joint position before and during welding.
- The clamp applies a large, uniform tightening force, which improves alignment accuracy and reduces the risk of weld defects.
- It is especially useful for 16” and above pipe jointing operations in oil & gas, LNG, petrochemical, and water-transmission projects.
- The CAGE TYPE PIPE CLAMP supports 360-degree continuous welding without removal, which enhances weld quality and saves time.
SPM Equipment manufactures high-quality CAGE TYPE PIPE CLAMP systems in various sizes that conform to international standards, helping you complete pipeline projects efficiently and safely. Pipeline projects in Qatar, Kazakhstan, Libya, Thailand, and Singapore cannot afford errors in alignment, especially when working with large-diameter or thick-walled pipes. Even a small misalignment can lead to poor welds, leaks, rework, and costly shutdowns. That is where a CAGE TYPE PIPE CLAMP becomes a game-changer for welders and pipeline engineers. At SPM Equipment, we design and manufacture CAGE TYPE PIPE CLAMP systems that deliver precise, fast, and repeatable alignment for critical jointing operations. In this post, you’ll learn how a CAGE TYPE PIPE CLAMP works, where it fits best in industrial workflows, and why SPM Equipment is a trusted choice for this kind of hydraulic pipe-welding hardware.
What Is a Cage Type Pipe Clamp?

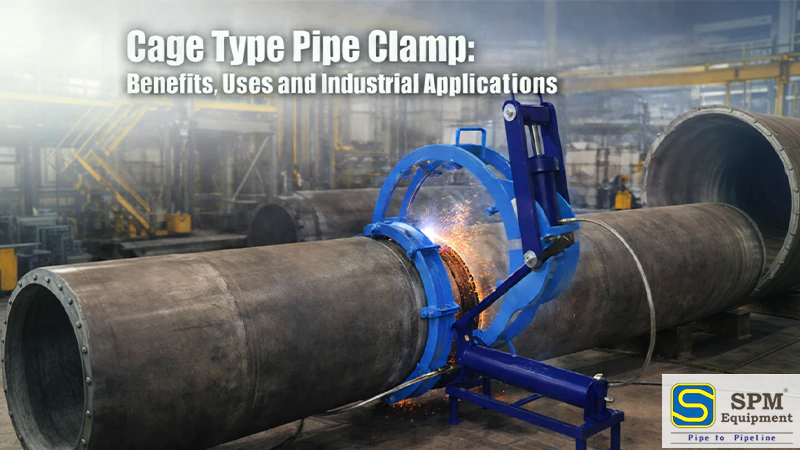

A CAGE TYPE PIPE CLAMP is a purpose-built hydraulic alignment clamp used to hold two pipe ends together in perfect alignment before and during welding. It typically consists of a steel ring or “cage” structure with internal jaws and a hydraulic actuation system that pulls the pipes into precise butt-joint position.
Unlike manual clamps or simple chains, a CAGE TYPE PIPE CLAMP applies a large, controlled tightening force around the entire circumference of the pipe. This uniform pressure minimizes ovalization and distortion, giving welders a clean, straight joint to work on. For projects in Qatar, Kazakhstan, Libya, Thailand, and Singapore, where high-pressure pipelines and offshore or industrial environments are common, this level of precision is essential for long-term reliability
Core Benefits of a Cage Type Pipe Clamp
Using a CAGE TYPE PIPE CLAMP brings several practical advantages on the job site. First, it significantly reduces the time required to align and clamp large pipe joints. Instead of adjusting multiple manual clamps or using time-consuming jigs, technicians can position the cage and let the hydraulic system bring the pipe ends into alignment within minutes.
A second benefit is consistency. The CAGE TYPE PIPE CLAMP is usually designed for a single pipe size, so once you choose the right clamp for your project, every joint can be aligned to the same standard. This repeatability helps maintain quality from one weld to the next, which is crucial for inspection-heavy projects in oil & gas, LNG terminals, and water-treatment plants across Qatar, Kazakhstan, Libya, Thailand, and Singapore.
How It Works in Practice
A typical CAGE TYPE PIPE CLAMP from SPM Equipment operates with a hand-pump-driven hydraulic system and does not require electricity or fuel on site. Technicians place the cage around the pipe ends, close the clamp, and then pump the hydraulic jack until the alignment mechanism brings the two pipe ends into the correct position.
The matching accuracy of a good CAGE TYPE PIPE CLAMP can hold the mismatch of the butt joint at or below roughly 1.5 mm, which is within the tolerance that many pipeline codes allow. The arched crossbar design also allows 360-degree continuous welding without having to remove the clamp partway through the weld, which keeps the alignment stable and reduces the risk of distortion.
Suitable Applications and Industries
CAGE TYPE PIPE CLAMP units are widely used in:
- Oil & gas transmission and distribution pipelines
- Offshore platforms and sub-sea tie-ins
- LNG and petrochemical plants
- Water transmission and desalination plants
- Large-diameter fluid and slurry pipelines
They are especially suited for 16” and above pipe jointing operations, where the weight and rigidity of the pipe make manual alignment difficult and time-consuming. For EPC contractors and welding supervisors in Qatar, Kazakhstan, Libya, Thailand, and Singapore, using a CAGE TYPE PIPE CLAMP streamlines the welding sequence, improves weld quality, and helps meet strict project schedules.
SPM Equipment manufactures CAGE TYPE PIPE CLAMP systems in various sizes and configurations that conform to international welding and pipeline standards, making them suitable for both onshore and offshore projects. This flexibility is one reason why SPM Equipment has become a preferred supplier for heavy-duty pipeline-welding equipment.
Key Features of SPM Equipment’s Cage Type Clamps
At SPM Equipment, our CAGE TYPE PIPE CLAMP systems are engineered with the following features in mind:
- Large tightening force – Hydraulic power allows the clamp to overcome friction and misalignment, even on thick-walled pipes.
- Single-size operation – Each clamp is designed for one specific pipe diameter, reducing on-site setup errors and improving matching accuracy.
- High efficiency – No need for repeated adjustments; once the clamp is set, it aligns the pipe quickly and holds it stable.
- 360-degree welding capability – The arched crossbar design lets the welder complete the full circumference without removing the clamp.
- Manual hydraulic operation – The system uses a hand-pump, so it works in remote or power-limited areas, which is useful for pipeline sections in Kazakhstan, Libya, and offshore projects in Qatar.
These features make SPM Equipment’s CAGE TYPE PIPE CLAMP a practical choice for projects that demand both speed and accuracy in joint preparation.
Why SPM Equipment Stands Out
SPM Equipment is a leading manufacturer and supplier of top-notch CAGE TYPE PIPE CLAMP hydraulic systems – and we’re not just talking about any systems, but ones that are built to last and can handle even the toughest environments. Every bridge and ring is carefully produced from high-quality steel with the utmost attention to detail in a controlled factory setting to meet the needs of heavy-walled-pipe welding, where accuracy really counts.
Over the years SPM Equipment has supplied hydraulic cage-type clamps to customers all over the world, supporting massive pipeline projects that deal with oil, gas, water and all sorts of industrial fluids. We’ve had the pleasure of working with clients in Qatar, Kazakhstan, Libya, Thailand and Singapore, all of whom need trustworthy, top-grade tools that can keep up with the demanding conditions on site and meet those tight project deadlines.
By choosing SPM Equipment for your CAGE TYPE PIPE CLAMP needs, you get to work with systems that are not just designed for safety, efficiency and modern pipeline construction – but also tailored to the specific needs of your project.
Why Choose Us
SPM Equipment is well-respected for being a reliable manufacturer and supplier of top-notch CAGE TYPE PIPE CLAMP hydraulic pipe-welding equipment – all of which are built for strength, precision and longevity. We know just how much pressure pipeline contractors and welding teams come under in places like Qatar, Kazakhstan, Libya, Thailand and Singapore, where even a tiny mistake in alignment can cost you big time or even pose a safety risk. Our CAGE TYPE PIPE CLAMP systems are designed to make joint preparation super easy, reduce the time spent welding, and deliver those perfect butt joints time after time. And by partnering with SPM Equipment, you’re making a smart investment in a solution that can really help you meet your project goals, boost your on-site efficiency and bring your pipeline construction and maintenance jobs into line with international standards.
Conclusion
A CAGE TYPE PIPE CLAMP is more than just a tool – it’s a precision instrument that can really make a difference to the quality of welds, the speed of projects and the safety of workers when it comes to big diameter and high-pressure pipeline work. From the mighty force of its hydraulic tightening to its ability to keep the butt joint perfectly aligned to within about 1.5 mm, this clamp really is the key to consistency and control in your operations. And if you’re working on pipeline projects in Qatar, Kazakhstan, Libya, Thailand and Singapore – you can’t go wrong with a high-performance CAGE TYPE PIPE CLAMP from SPM Equipment. It’ll help cut down on those pesky alignment errors, reduce the amount of time spent re-working things and make your inspections and commissioning a whole lot smoother.
To learn more about CAGE TYPE PIPE CLAMP solutions and how they can support your next pipeline or welding project, call us at +919574770022 or email spmequipment@gmail.com.
FAQs
Is a CAGE TYPE PIPE CLAMP suitable for different pipe sizes?
Each CAGE TYPE PIPE CLAMP is typically designed for one specific pipe diameter, so you need to select the clamp that matches your pipe size.
Can it be used without electricity on site?
Yes, most CAGE TYPE PIPE CLAMP systems from SPM Equipment are manually operated with a hydraulic hand-pump, so they do not require electricity or fuel.
How does it improve weld quality?
By holding the pipe in perfect alignment with minimal mismatch, the clamp reduces distortion and helps welders produce cleaner, more consistent joints.
Where can I buy a CAGE TYPE PIPE CLAMP for projects in Qatar or Kazakhstan?
You can source CAGE TYPE PIPE CLAMP units from SPM Equipment, which supplies hydraulic pipe-welding clamps to clients in Qatar, Kazakhstan, Libya, Thailand, Singapore, and other international markets.
